The DBM-150 is a highly versatile booklet maker capable of standalone/hand-fed operation or connection to a choice of friction or suction collators and Duplo’s DSF-2200digital printed sheet feeder.

The operating speed is up to 2,400 booklets per hour and most of the setup is automatic making. This is a perfect machine for shortrun booklet production.

Featuring the Isaberg Rapid stapler and staple cartridge, the DBM-150 Bookletmaker produces a high quality, flat staple every time. Each cartridge holds 5,000 staples and wear parts are replaced each time the cartridge is changed out, providing a high level of reliability. The DBM-150 Bookletmaker can be operated via the control panel where up to 16 jobs can be saved in memory or via a PC using the optional PC Controller software.

The 350 Booklet System is Duplo’s mid-range bookletmaking system can be integrated with the DSC-10/60i Suction. Collators producing a wide range of offset and digital print applications, from calendar and catalogs to brochures and newsletters, on demand. The 350 Booklet System provides the efficiency to deliver jobs in shorter turnarounds and its modular design offers users the flexibility to customize them according to their needs.

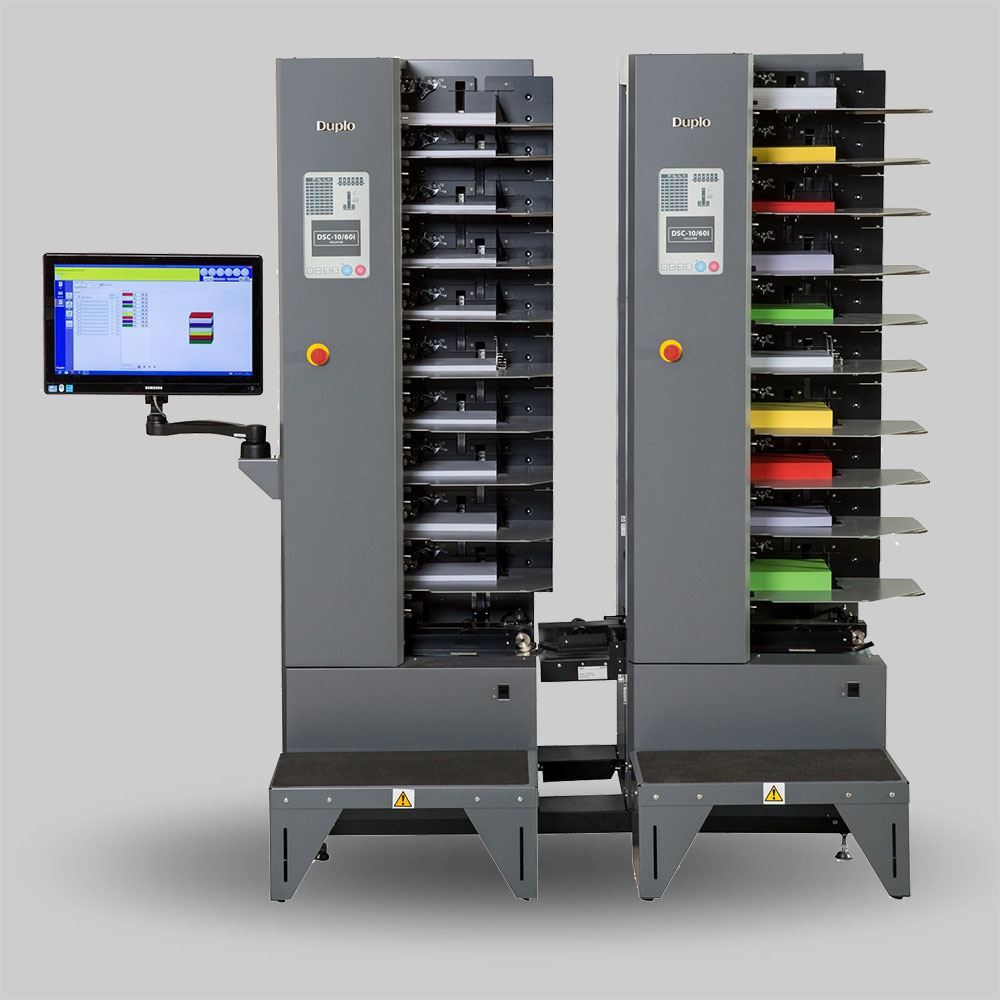

The 350 Booklet System utilizes Duplo’s DSC-10/60i Suction Collators. The unique 8-belt air suction feed system along with an Air Management System make these collators the most reliable in the industry. Incorporating Duplo’s patented dual fan technology, each bin comes equipped with two individual fans – one to produce a stable flow of air separation and the other to generate consistent suction for feeding. With adjustments conveniently located beside each bin, the Air Management System enables operators to easily fine-tune the amount and strength of air, if necessary.

CUSTOMIZABLE TO MEET YOUR NEEDS

The modular design of the system enables users to configure it with a number of options such as small booklet, side/corner stitch, and 6-page insert kits to meet various application demands. Booklets can be faced trimmed by adding the DBM- 350T Trimmer. As booklets are trimmed and delivered onto the stacker, waste is automatically deposited into an external bin and can be easily removed while the system is running, ensuring non-stop productivity.

Duplo DC-646 is fully automatic programmable high performace multi-finishing set-up processing 8 slits, 25 cuts and 20 creases in a single pass for applications like business cards, greeting cards, brochures, invitations, book covers, menus, tent cards, doctor files, tickets, coupons etc.

It is very versatile due to its capability of processing linear and cross perforation in a single pass, which helps us doing T & L shape perforations very precisely. It also performs micro-perforations, slit-scores, strike perforations etc.

the DC-646 eliminates white borders and prevents toner cracking on fold lines up to 30 sheets per minute and also offers optional rotary tool and cross perforating modules, both with strike-perforating capabilities, for increased versatility. With the DC-646, users can produce 24-up business cards on 12" x 18" or 36-up on 14" x 26" paper sizes, slit-score greeting cards, micro-perforated coupons, direct mailers with tear-away cards, and much more!

The DC-646 comes built-in with a CCD scanner, enabling it to recall any job stored in memory simply by reading the printed barcode and automatically set up the job. The scanner also reads registration marks, correcting the sheet-by-sheet image shift and delivering accurately finished pieces every time. Barcodes and registration marks can be easily applied with the EFI Fiery Command Workstation impose tool (Fiery System 10 or newer)

• Fully automatic programmable machine, Accuracy and preciseness is key.
• Device is very robust and compact, versatile high performance device.
• PC controller enables users to easily & quickly operate, create & adjust jobs.
• Adjustable in four steps the vacuum registration table precisely aligns each sheet, maintaining a high degree of precision finishing.
• Customer replaceable modules help create versatile applications with the widest range of substrates.
• Automatic feed tray features a vacuum feeding system that prevents marking miss or double feeding.
